Description

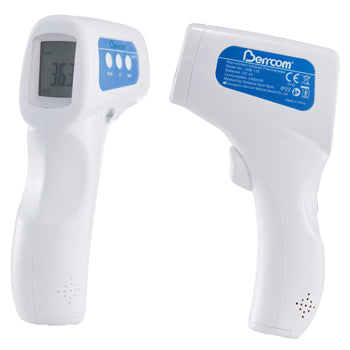

The device is an infrared thermometer designed to measure the forehead temperature of infants and adults without the need for contact with the human body.
It can be used both by consumers at home and by doctors in clinics.
The thermometer is powered by two AA batteries (DC 3V).
LCD display and infrared lens.

The thermometer is preset to BODY mode. Surface temperature differs from body temperature. To obtain body temperature, always use BODY mode. When measuring the temperature of a baby bottle or bathtub, use Surface Temp mode. To measure the temperature of a room, use Room mode.

Technical specifications
- Memory: 32 measurements.
- Measuring distance: 3cm - 5cm.
- Automatic shutdown in less than 30 seconds.
- Display temperature: 0.1°C (0.1°F).
- Measuring range:
Body temperature measurement: 32°C - 49°C (89.6°F - 109.2°F).
In BODY mode, the screen has three backlight colors: green, orange and red.
Green: Below 37.3°C (99.1°F), normal temperature.
Orange: 37.4°C - 37.9°C (99.3°F - 100.2°F), low fever.
Red: Over 38°C (100.4°F), high fever.
Surface temperature measurement: 0°C - 60°C (32°F - 140°F).
Ambient temperature measurement: 0°C - 40°C (32°F - 104°F).
The thermometer can detect temperatures below 32°C or above 42.9°C, but accuracy is not guaranteed outside this range.
- Accuracy:
32°C - 34.9°C (89.6°F - 94.8°F): ±0.3°C (±0.6°F).
35°C - 42°C (95°F - 107.6°F): ±0.2°C (±0.4°F).
42.1°C - 42.9°C (107.8°F - 109.2°F): ±0.3°C (±0.6°F).

How to use
Install the batteries. When using for the first time after inserting the batteries, wait 10-15 minutes for the device to adjust to the room temperature. Press the On/Scan button, aiming it at the center of the forehead, at a distance of 3-5 cm. Make sure it is set to BODY mode then press the On/Scan button and the temperature will be displayed immediately. Before taking a measurement, make sure that any hair, sweat or dirt is removed from the forehead and that the forehead is thoroughly dry. Wait 10 minutes after doing so before taking a measurement.

Normal conditions of use:
Ambient temperature 10°C - 40°C (50°F - 104°F).
Relative humidity less than 85%.
Pressure altitude 700 hPa to 1060 hPa.

The reliability of the measurement is not guaranteed if the temperature measurement is taken on another part of the body (e.g. arm, torso).
Do not move the thermometer until the final value is displayed.
Measurements cannot be taken in places with a large air flow (e.g. wind, air conditioning, fans).
Do not take a measurement immediately after exercising, showering, taking medicine, eating or drinking, or applying a "cold or hot compress to the forehead". Do not take a measurement when there has been a significant change in environmental conditions. Allow the device to adapt to the new conditions for 30 minutes before using it again.
Wait 3 to 5 seconds between measurements.
It is recommended to take three measurements on the forehead. If the three measurements are different, consider the highest value.

Clean the sensor with a cotton cloth moistened with 95% isopropyl alcohol. Cleaning should be done regularly. To clean the entire device, use a soft cloth slightly moistened with warm soapy water or 70% isopropyl alcohol. Under no circumstances should liquid enter the thermometer.
Do not use the thermometer for at least 30 minutes until it is completely dry.
Never use aggressive detergents, thinners, petrol or hard brushes.

Warnings
Use the thermometer only after reading and understanding the instructions for use. Use only for the specific purpose as described in the instruction manual. Any incorrect use will void the warranty.
The use of the thermometer cannot replace a doctor's consultation. Do not use the device for self-diagnosis or taking medications based on the measurements taken without consulting a doctor. In particular, do not start using medications or change the type of dosage without prior approval.
Children should not use this thermometer. The device is not a toy.
If this thermometer is stored in a place that is colder or warmer than where it will be used, leave it in the patient's room for at least 30 minutes before taking a measurement.
Do not expose the thermometer to electric shock or extreme temperatures above 55°C (131°F) or below -20°C (-4°F). Do not use the device in relative humidity greater than 85%. Do not expose the thermometer to sunlight, excessively high or low temperatures, dirt or dust.
Don't drop the thermometer.
Do not touch the glass of the infrared lens with your fingers. The lens is very fragile and can easily break and cause injury.
Do not use if thermometer is damaged.
Do not open the thermometer: it contains small parts that can be swallowed by children.
Do not immerse the thermometer in water or other liquids. It is not waterproof or leakproof.
If you experience any problems with the device, do not attempt to repair it yourself, as this will void the warranty. Contact your dealer and have repairs performed by authorized service partners only.
Remove the batteries if you do not intend to use them for a long period of time. Otherwise, there is a risk that the batteries may be damaged.
Keep the thermometer away from electromagnetic fields produced by devices such as microwave ovens, soldering irons, induction cookers.
A control measurement with a conventional thermometer is advisable in the following cases:
- if the reading is surprisingly low;
- for newborns up to 100 days;
- for children under three years of age with a weak immune system or who react unusually whether or not they have a fever.
- if you are using the thermometer for the first time or want to familiarize yourself with it.

Conservation
Store at a temperature between -20°C and +55°C, in a clean, dry place, away from sunlight or excessively high or low temperatures.
Validity with intact packaging: 60 months.

Format
Package containing:
- Remote infrared thermometer;
- User manual.

Code JXB-178
